261kWh Commercial & Industrial ESS Cabinet

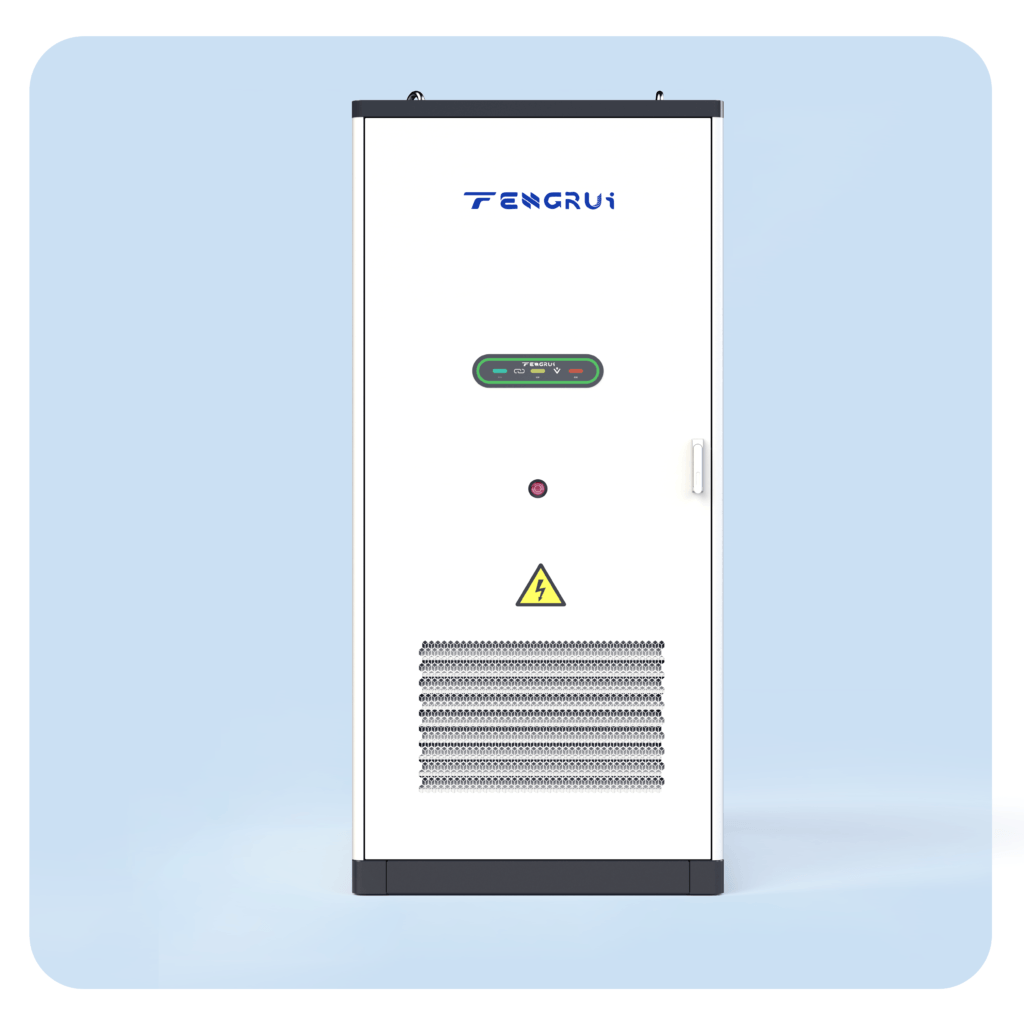

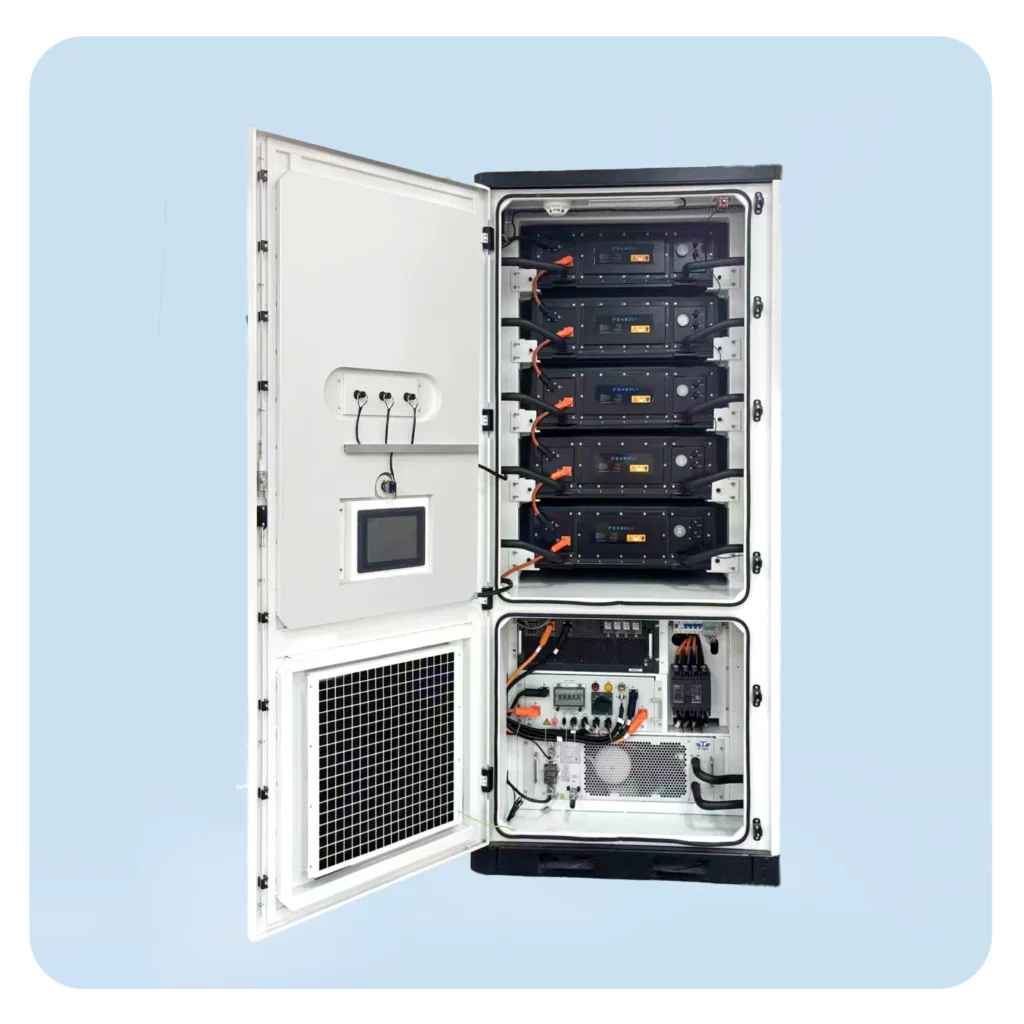

FRL1-125-261K Liquid Cooling Commercial & Industrial ESS Cabinet
- Stable & Reliable: Liquid cooling ensures uniform temperature for cells from -30°C to 55°C, enhancing stability, extending battery life, and reducing noise
- Ultra-High Power Density: Packs 125kW and 52.24kWh into a compact footprint with exceptional power density, ideal for space-constrained or high-cost locations
- High-Voltage Platform: The 832V high-voltage system reduces current and losses, efficiently matching medium-voltage PCS for superior overall efficiency
- Transformerless Design: Advanced non-isolated topology eliminates heavy transformers, improving efficiency while reducing weight, cost, and losses
- Robust Overload & Unbalance Load Capability: Supports 125% overload for 10s and 150% for 0.1s, with 100% unbalance load capacity in off-grid mode for demanding loads
- Industrial-Grade Protection: IP55 rating, C4 anti-corrosion, and integrated gas + water fire suppression meet safety and reliability demands for harsh environments
Certificate: CE, UN38.3, MSDS, RoHS
Categories: High Voltage Series(HV)
Technical Specifications
Model
FRL1-125-261K
Cell Chemistry
LFP/314Ah
Rated Energy
261kWh
Max. Current
203A
Rated Voltage
832V
Cooling Concept
Liquid Cooling
Ingress Protection
IP55
Topology
Non-isolated
Anti-corrosion Degree
C4
Configuration of Safety
Gas fire suppression + Water fire suppressin
Max. Parallel Quantity (off-grid)
10 units
