5.12kWh/10.24kWh Wall-mounted LiFePO4 Battery
FENGRUI » Products » LFP Battery Pack »

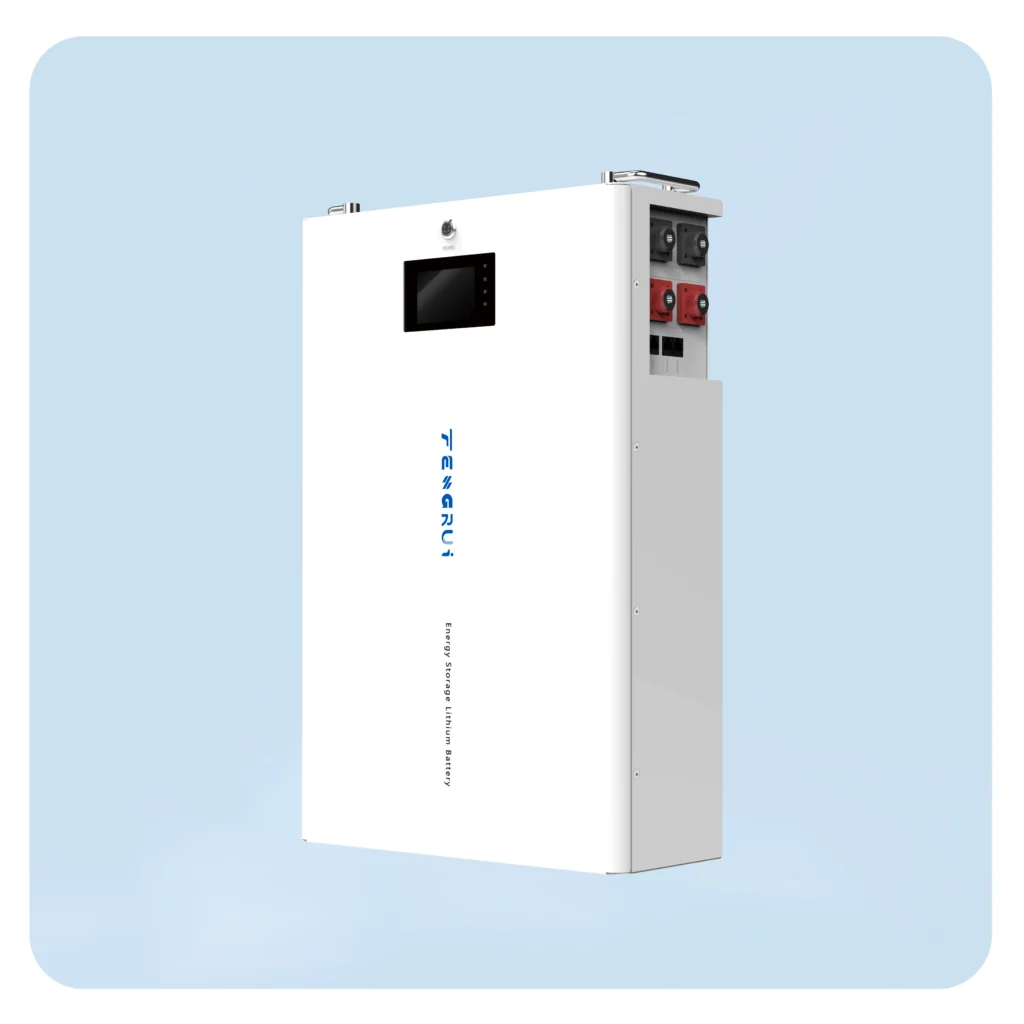

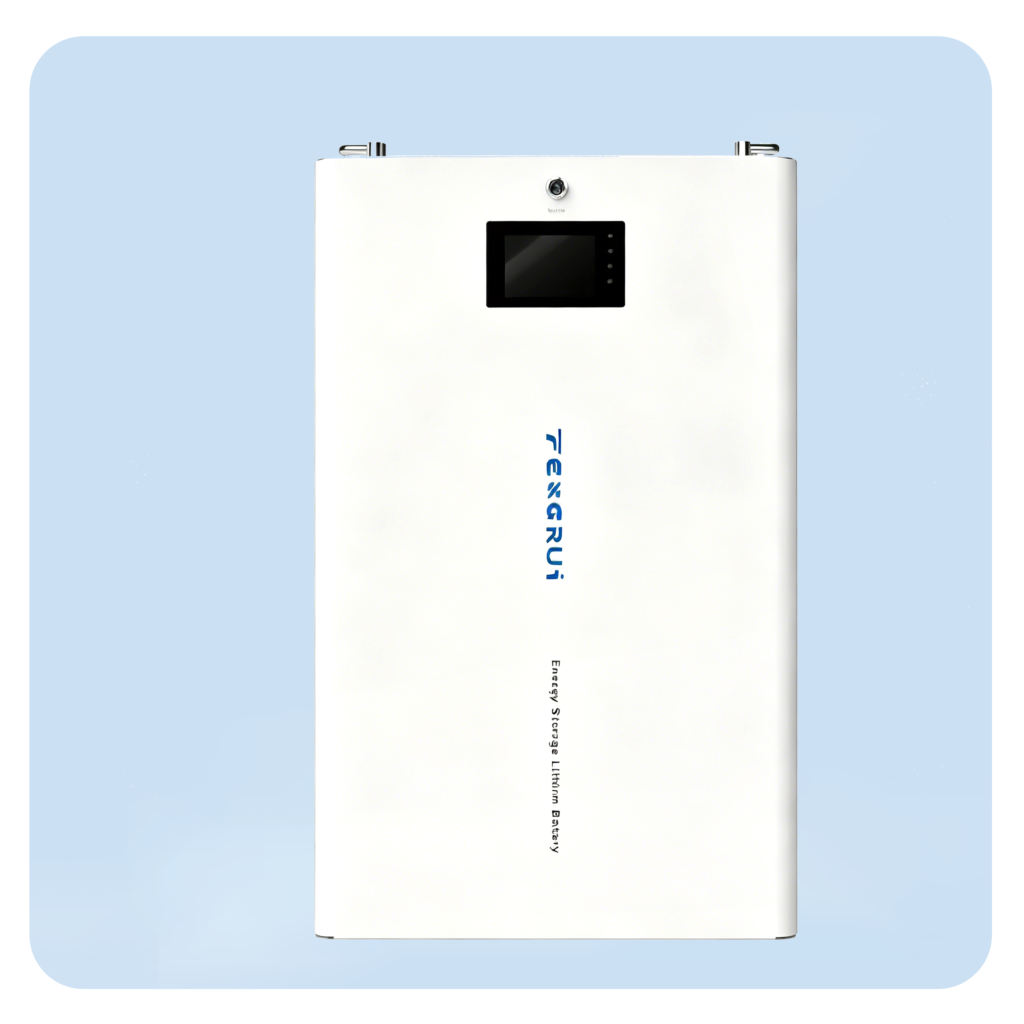

LB-W5K 5.12kWh/10.24kWh Wall-Mounted LiFePO4 Home Energy Storage Battery
- Space-Saving: Wall-mounted installation saves floor space, ideal for homes and apartments with limited space
- Wide Temperature Range: Operating temperature -20°C to 60°C, suitable for cold and hot climates, stable performance
- Application: Designed for apartment
balconies, home backup, or small convenience stores
- International Certifications for Safety: CE, RoHS, UN38.3 certified, safe and reliable for international markets
- Display: LCD screen; directly display the operating status of each battery
Certificate: CE, UN38.3, RoHS
Categories: Low Voltage Series(LV)
Technical Specifications
Model
LB-W5K
LB-W10K
Nominal Energy
5.12kWh
10.24kWh
Capacity
100Ah
200Ah
Battery Chemistry
LiFePO4
Cycle Life
＞6,000 Cycles
Nominal Voltage
51.2V
Operating Voltage
44.8V~57.6V
Dimension (L*W*H)
400*170*610 mm
620*275*1,000 mm
Weight
42kg
90kg
Technical Specifications
Model
LB-W5K/10K
Battery Chemistry
LiFePO4
Capacity
100/200Ah
Cycle Life
＞6,000 Cycles
Nominal Voltage
51.2V
Operating Voltage
44.8V~57.6V
Nominal Energy
5.12/10.24kWh
Weight
42/90kg
Dimension (L*W*H)
400*170*610 mm / 620*275*1,000 mm
