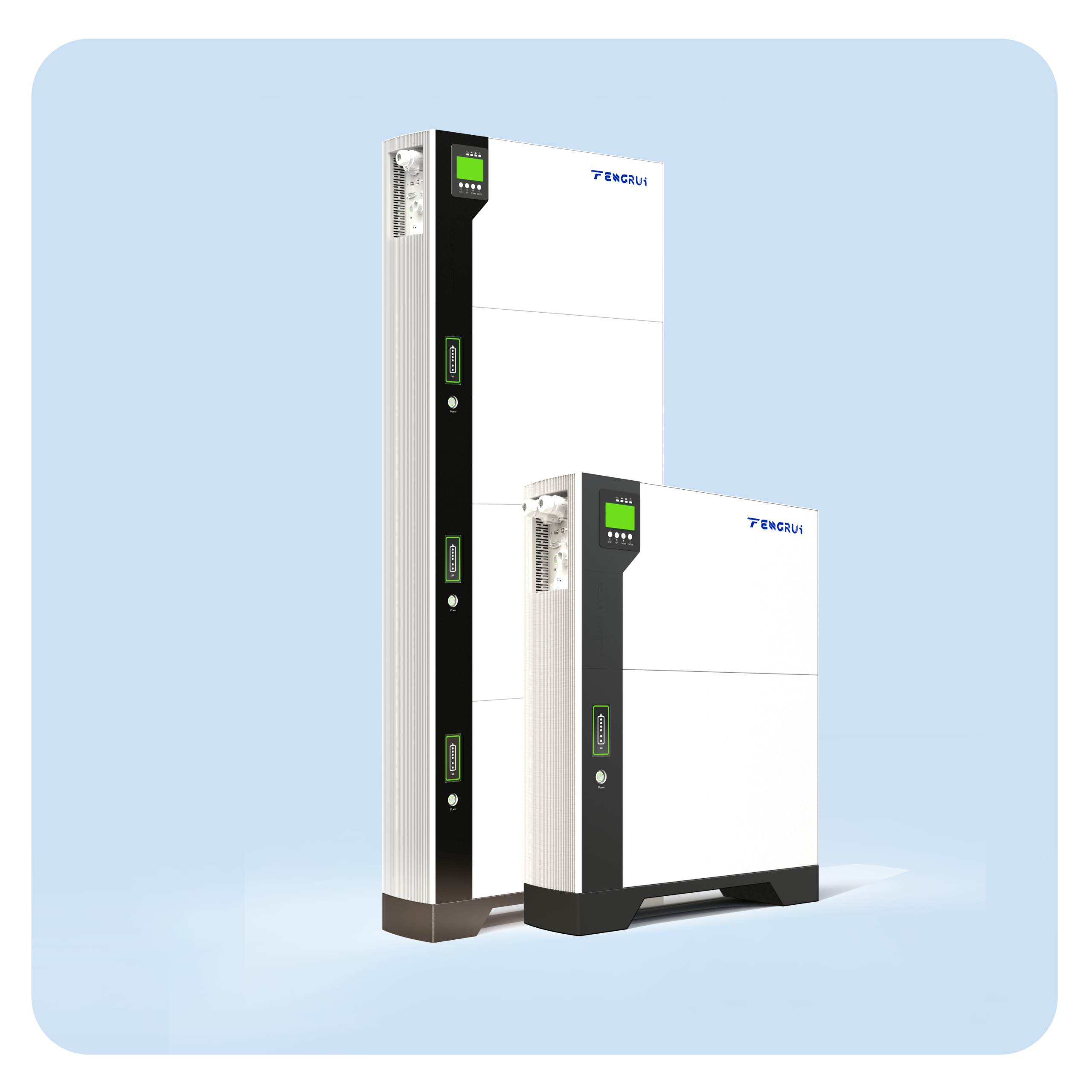

16kWh All in One Residential ESS
FENGRUI » Products » Residential ESS »
MESS-10-16K 16kWh Low Voltage Integrated PV -Storage-Charging-Diesel ESS
- Large & Scalable: 16kWh per unit, supports up to 10 in parallel for 16-160kWh capacity, ideal for home and commercial storage
- High Efficiency: Equipped with dual MPPT, max PV input 12kW, voltage range 90-450V, improving PV utilization and yield
- Plug & Play: Wheel-equipped for easy mobility; plug-and-play design enables simple installation and quick deployment
- EV Charging Support: Integrated 32A EV charging port supports electric vehicle charging, enabling solar-storage-EV integration
- Fast Grid Switching: Grid/off-grid transfer time only 10ms, ensuring uninterrupted power for critical loads
- All in One Design: Single phase inverter and 16kWh LiFePO4 battery
Certificate: CE, UN38.3, MSDS, RoHS
Categories: Low Voltage Series(LV)
Technical Specifications
Model
MESS-10-16K
Cell Chemistry
LiFePO4 314Ah
Capacity
314Ah
Grid Connection
Single Phase
Grid Transfer Time
10ms
EV Charging Port
32A Max
Nominal Energy
16kWh
Weight
~148kg
Dimension (L*W*H)
695*270*980 mm
