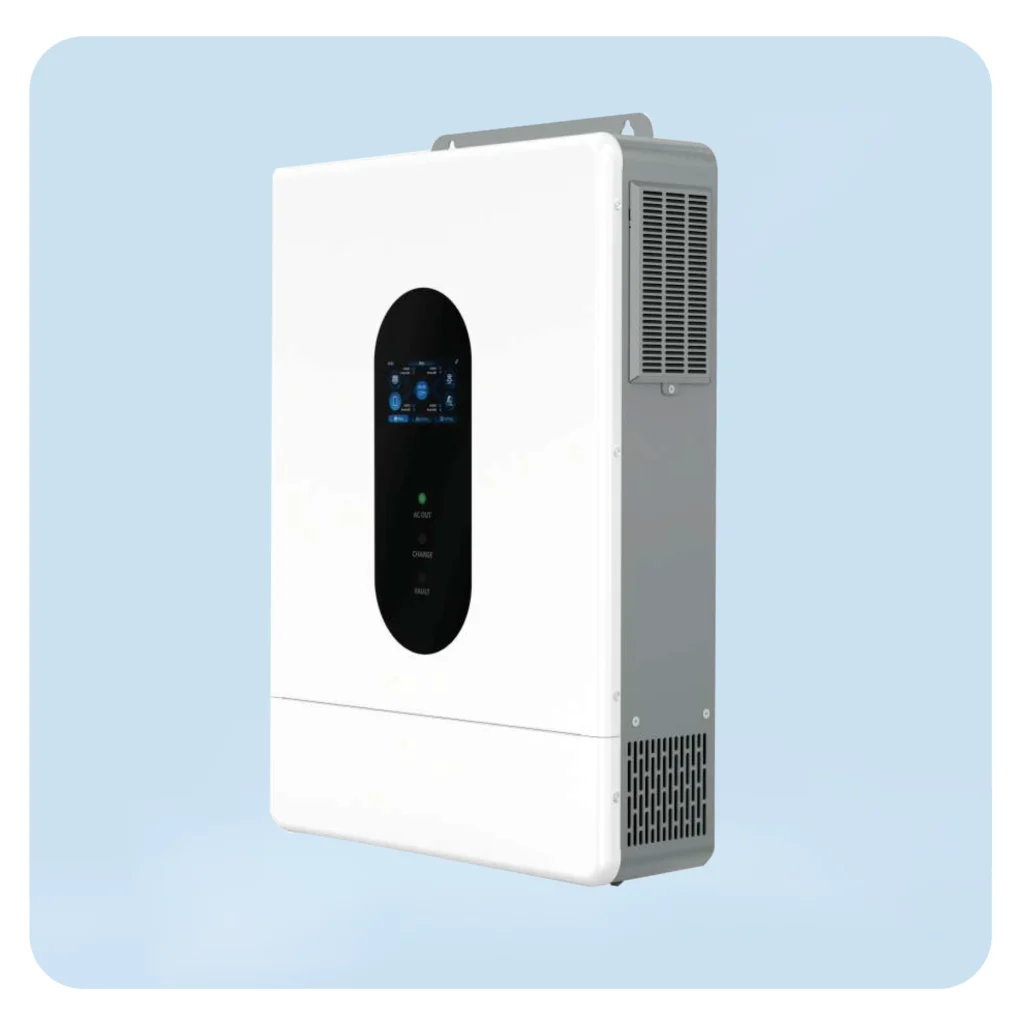

12kW Split Phase Hybrid Inverter | HSP1-LV12

12kW Split-Phase Hybrid Solar Inverter

FENGRUI » Products » Inverter » 12kW Split Phase Hybrid Inverter | HSP1-LV12

Perfect Compatibility with Residential Loads: Designed specifically for North American electrical standards, the inverter delivers both 120V and 240V split-phase output, supporting household appliances, HVAC systems, water pumps, and other high-power loads

Ultra-Fast 10ms UPS Switching: When utility power is interrupted, the inverter automatically switches to battery power within just 10 milliseconds, ensuring continuous operation of critical household equipment without noticeable interruption

Supports Up to 150% PV Oversizing: The inverter supports solar arrays up to 6,000W with dual MPPT tracking, allowing installers to maximize energy production throughout the day

Smart Hybrid Charging up to 220A: Supporting combined PV charging currents up to 220A, the inverter rapidly charges battery systems while intelligently managing solar generation, battery storage, and utility power.

Certificate: UL, STD.1741

Categories: Split Phase

Model

HSP1-LV12

Rated Output Power

Split Phase:12,000W Single Phase7,200W (Limited by the wiring terminals)

Peak Power

Split Phase: 18,000VA Single Phase: 18,000VA

Rated Output Voltage

120Vac(L1/N, L2/N)/240Vac(L1/L2)

Battery Voltage

48V

Battery Type

Lithium Battery/ Lead Acid

Max. PV Input Power

6,000W+6,000W

MPPT Quantity

MPPT Voltage Range

90Vdc ~ 450Vdc

Max. PV Open Circuit Voltage

500Vdc

Transfer Time

10ms

Max. AC Charge Current

160A

Parallel Operation

Up to 6 Units

Efficiency

>95%

Communication

USB / RS485 / WiFi / GPRS / Dry node control

Operating Temperature

-10°C to +55°C
