418kWh All In One Energy Storage Cabinet

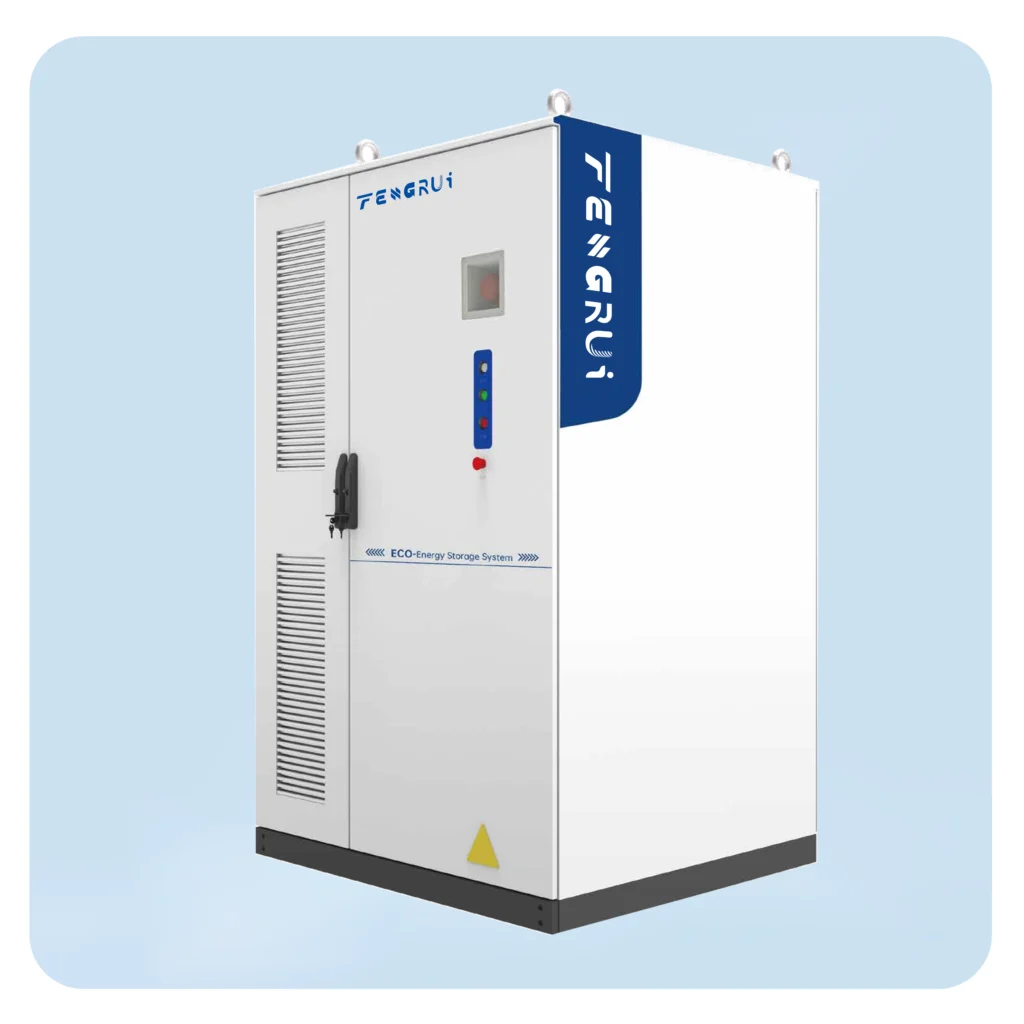

ECO-E418LP 418kWh All-in-One Commercial & Industrial Liquid-Cooled Energy Storage Cabinet
- Compact Footprint: The ECO-E418LP delivers 418kWh usable energy within a highly integrated cabinet design, enabling commercial facilities to store more electricity while minimizing installation space
- Liquid Cooling Technology: Unlike traditional air-cooled systems, the ECO-E418LP utilizes pack-level liquid cooling technology to maintain battery temperature differences within a narrow range
- Long-Term Return on Investment: Built with high-quality LiFePO4 battery cells, the system provides more than 8,000 cycles under standard operating conditions
- Integrated Safety Protection System: The cabinet incorporates: Intelligent BMS monitoring, Aerosol fire suppression system, Thermal runaway prevention, Fault diagnosis and alarms, IP55 enclosure protection
- Flexible Expansion: The modular architecture simplifies transportation, deployment, and future capacity expansion
Certificate: UN38 .3, IEC62477-1, IEC61000, IEC62619, IEC63056, UL9540A, EN50549
Categories: Commercial & Industrial ESS
Technical Specifications
Model
ECO-E418LP-4A400
ECO-E418LP-3A480
ECO-E418LP-2A690
ECO-E418LP-2A800
DC Side
Cell Type
LFP/314Ah
System Configuration
418kWh
Rated DC Voltage
1,331.2V
AC Side
Rated Output Power
125kW
150kW
215kW
215kW
Rated AC Voltage
400V
480V
690V
800V
THDi
≤3%
General
Max. Efficiency
≥90%
Cycle Life
≥8,000 Cycles
Cooling
Liquid Cooling + Air Cooling
Fire Protection
Aerosol System
Communication
Modbus TCP / RTU
Ingress Rating
IP55
Operating Temperature
-25°C ~ +55°C
Noise
≤80 dB
Anticorrosion Rating
C4 (Optional C5)
Altitude
Up to 4000m
Dimensions (W*D*H)
1,500 × 1,350 × 2,400 mm
Weight
3,800 kg
Technical Specifications
Model
ECO-E418LP
DC Side
Cell Type
LFP/314Ah
System Configuration
418kWh
Rated DC Voltage
1,331.2V
AC Side
Rated Output Power
125kW/150kW/215kW
Rated AC Voltage
400V/480V/690V/800V
THDi
≤3%
General
Max. Efficiency
≥90%
Cycle Life
≥8,000 Cycles
Cooling
Liquid Cooling + Air Cooling
Fire Protection
Aerosol System
Communication
Modbus TCP / RTU
Ingress Rating
IP55
Operating Temperature
-25°C ~ +55°C
Noise
≤80 dB
Anticorrosion Rating
C4 (Optional C5)
Altitude
Up to 4000m
Dimensions (W*D*H)
1,500 × 1,350 × 2,400 mm
Weight
3,800 kg
