High Voltage C&I LiFePO4 Battery System

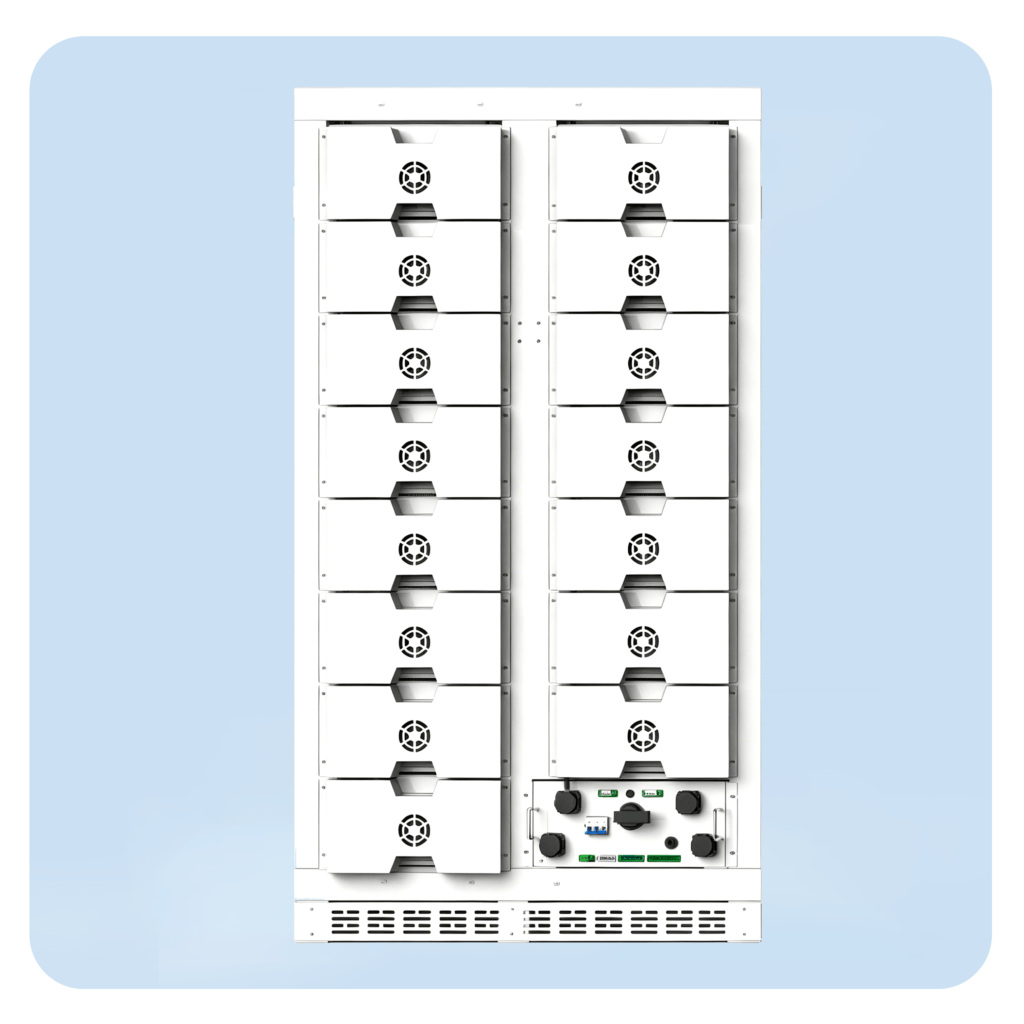

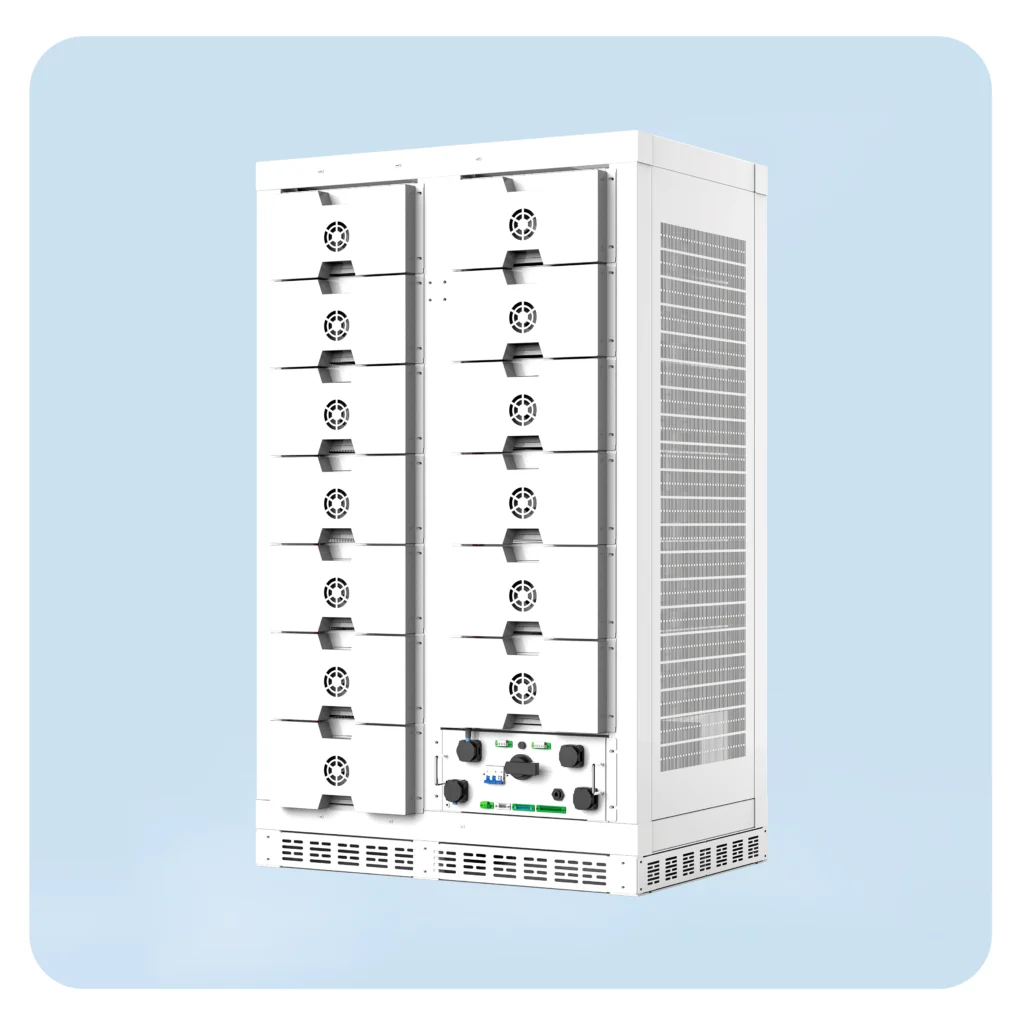

HB-RM16K High Voltage Rack Mounted Industrial and Commercial LFP Battery System
- Massive Capacity per Module: Up to 241kWh per module reduces the number of units in a system, simplifying connections and maintenance
- High Efficiency: Up to 768V allows efficient direct connection to medium/high-voltage PCS, reducing internal losses
- Flexible Configuration: Standard industrial rack size allows flexible “building block” configuration for systems from hundreds of kWh to several MWh
- High Current Support: Uses 314Ah LFP cells and supports 140A continuous current, ensuring robust power delivery capability
- Industrial-Grade Design: Designed for stationary installation, operating temperature range suits most indoor industrial environments
Certificate: CE, UN38.3, MSDS, RoHS
Categories: High Voltage Series(HV)
Technical Specifications
Model
RM16K-96K
RM16K-112K
RM16K-128K
RM16K-144K
RM16K-160K
Rated Energy
96.46 kWh
112.53 kWh
128.61 kWh
144.69 kWh
160.76 kWh
Nominal Voltage
307.2V
358.4V
409.6V
460.8V
512V
Dimensions (L*W*H)
585*784*2,150mm
1,170*784*2,150mm
Weight
788kg
898kg
1,083kg
1,193kg
1,303kg
Model
RM16K-176K
RM16K-192K
RM16K-208K
RM16K-224K
RM16K-240K
Rated Energy
176.84 kWh
192.92 kWh
208.99 kWh
225.07 kWh
241.15 kWh
Nominal Voltage
563.2V
614.4V
665.6V
716.8V
768V
Dimensions (L*W*H)
1,170*784*2,150mm
Weight
1,413kg
1,523kg
1,633kg
1,743kg
1,853kg
General Data
Cycle Life
＞6,000 Cycles
IP Rating
IP20
Cell Chemistry
LFP/314Ah
Depth of Discharge
80%
Max. Continuous Current
140A
Communication
Modbus RTU
Technical Specifications
Model
HB-RM16K
Cell Chemistry
LFP/314Ah
Rated Energy
96.46kWh ~ 241.15kWh
Max. Continuous Current
140A
Nominal Voltage
307.2V~768V
Communication
Modbus RTU
Depth of Discharge
80%
Cycle Life
＞6,000 Cycles
IP Rating
IP20
