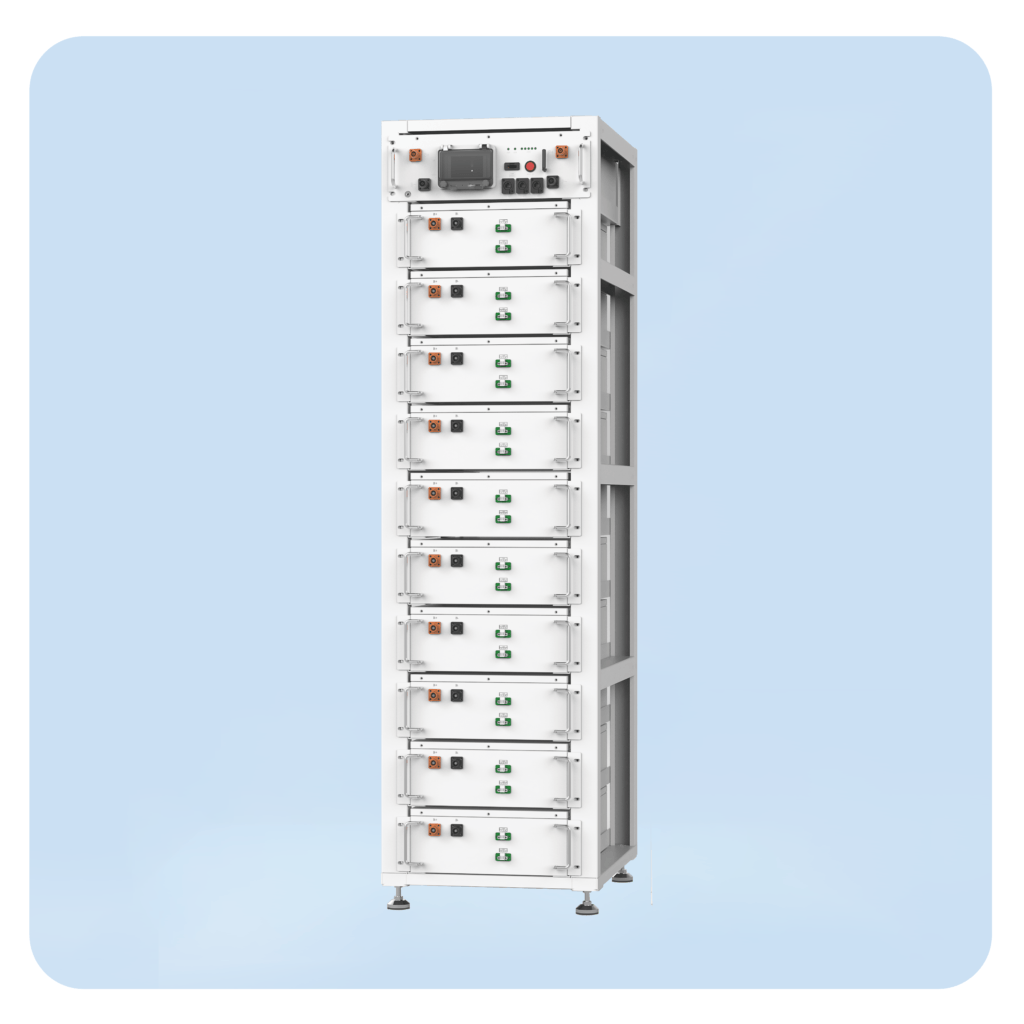

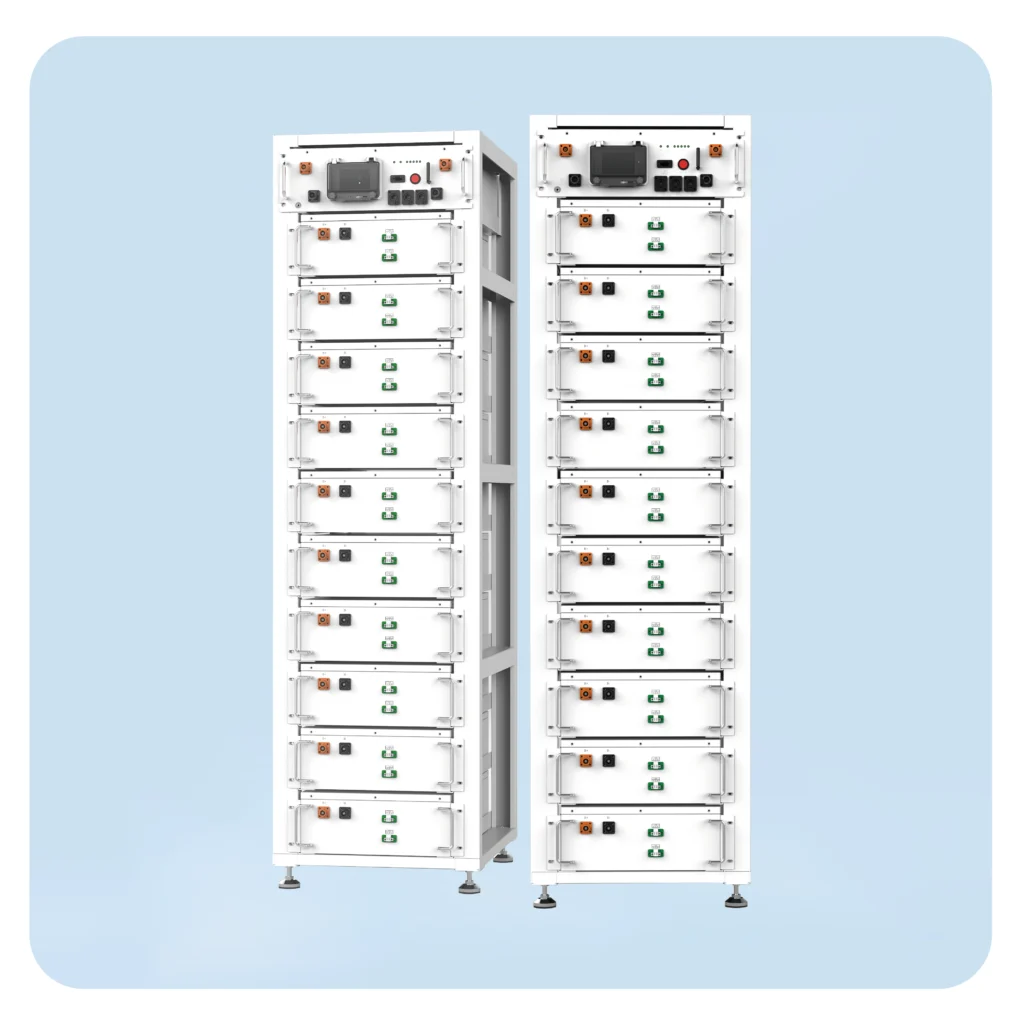

High Voltage Rack-mounted LFP Battery
HB-5K Standard Rack Mounted High Voltage ESS Battery
- Massive Capacity & Ultimate Scalability: With up to 51.2kWh per unit and support for 32 units in parallel, easily build systems from 20kWh to nearly 2MWh to meet growing energy demands
- Efficient & Energy-Saving: Operating voltage up to 512V reduces transmission losses and improves overall efficiency, ideal for high-power charge/discharge scenarios
- Wide Temperature Operation: Discharge temperature as low as -20°C ensures reliable operation in cold climates and various conditions
- Modular Design: Standard rack mounted design support flexible installtion
Certificate: CE, UN38.3, RoHS, MSDS
Categories: High Voltage Series(HV)
Technical Specifications
Model
RM5K-20K
RM5K-25K
RM5K-30K
RM5K-35K
RM5K-40K
RM5K-45K
RM5K-50K
Rated Energy
20.48 kWh
25.6 kWh
30.72 kWh
35.84 kWh
40.96 kWh
46.08 kWh
51.20 kWh
Nominal Voltage
204.8V
256V
307.2V
358.4V
409.6V
460.8V
512V
Discharge Output
10.24 kW
12.8 kW
15.36 kW
17.92 kW
20.48 kW
23.04 kW
25.6 kW
General Data
Cycle Life
＞6,000 Cycles
IP Rating
IP20
Cell Chemistry
LFP/100Ah
Depth of Discharge
90%
Serial and Parallel Quantities
Up to 32 units in parallel
Technical Specifications
Model
HB-5K
Battery Chemistry
LiFePO4
Capacity
100Ah
Scalability
Max. 32 units in parallel and serial
Nominal Voltage
204.8V~512V
Depth of Discharge
90%
Nominal Energy
20.48kWh ~ 51.20kWh
IP Rating
IP20
Operating Temperature
-20~60℃
