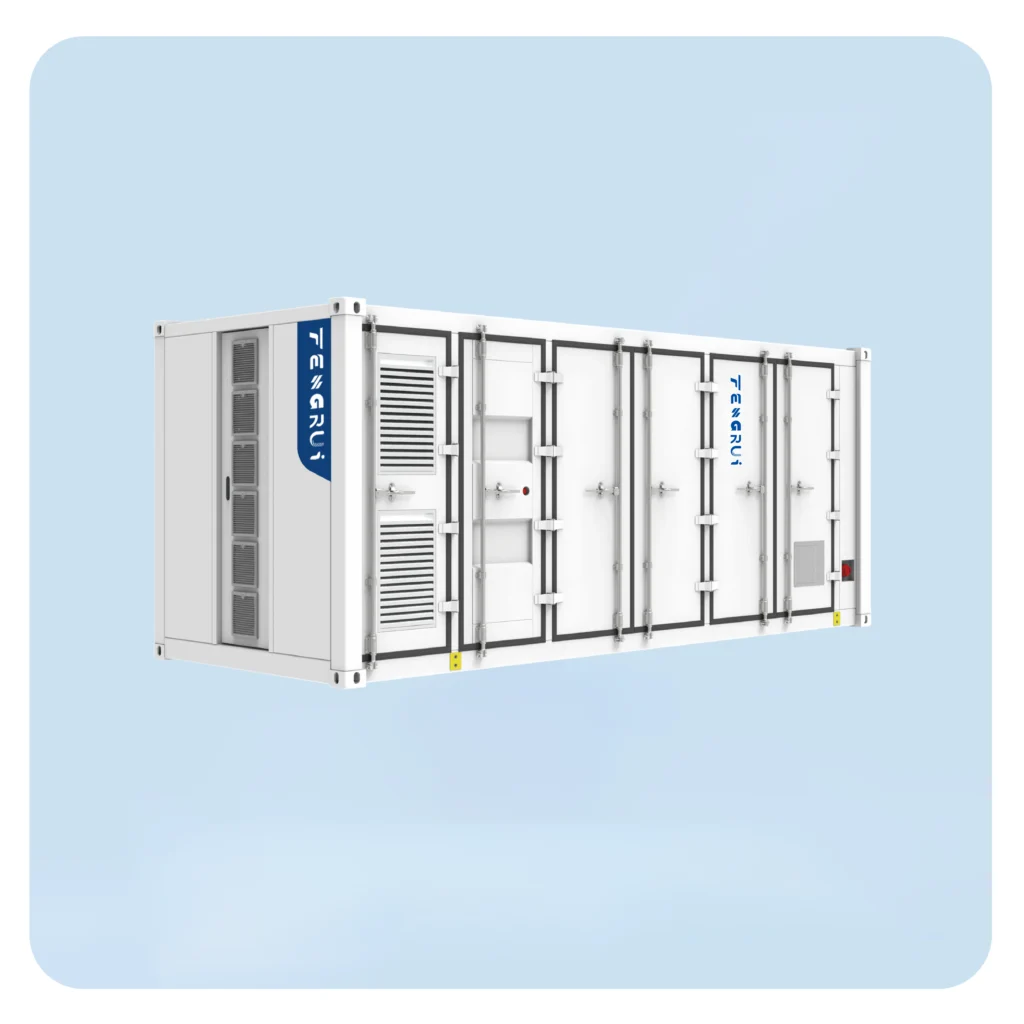

2.17MWh Containerized Liquid-Cooled ESS

FENGRUI » Products » Large Utility-Scale ESS » 2.17MWh ESS Container | LC1-1M-2170K

Ultra-Large Capacity: Single-container capacity of 2.17MWh with 768V DC voltage meets the storage needs of small power plants or large factories

Superior Thermal Management: Liquid + forced air cooling ensures efficient, uniform temperature operation from -25°C to 55°C, extending life and safety

Dual Fire Suppression: Pack-level and container-level aerosol plus water spray systems provide multi-layer protection, exceeding safety standards

Industrial-Grade Protection: IP55 rating, C4 (C5 optional) anti-corrosion, suitable for harsh industrial/outdoor environments with high humidity/salt spray

Grid Services Ready: 1000kW/1100kVA AC output, adjustable PF (-1 to +1), THDi≤3%, capable of providing grid services like frequency regulation

Certificate: UN38 .3, IEC62477-1, CE/EMC, IEC62619, IEC63056, UL9540A, IEC62933 EN50549

Categories: High Voltage Series(HV)

Model

LC1-1M-2170K

Cell Type

LFP/314Ah

Rated Energy

2,170kWh

Round Trip Eiciency

≥88%

Cycle Life

≥8,000 Cycles

Communication

Modbus TCP/IP

Fire Suppression System

Aerosol system(pack level and container level), water spray system

Ingress Rating

IP55

Cooling

Liquid cooling+Forced air cooling

Anticorrosion Rating

C4 (C5 optional)

Noise

≤ 80 dB

Dimensions (W*D*H)

6,058*2,438*2,591 mm

Weight

28t
