Wall Mounted Residential Energy Storage System

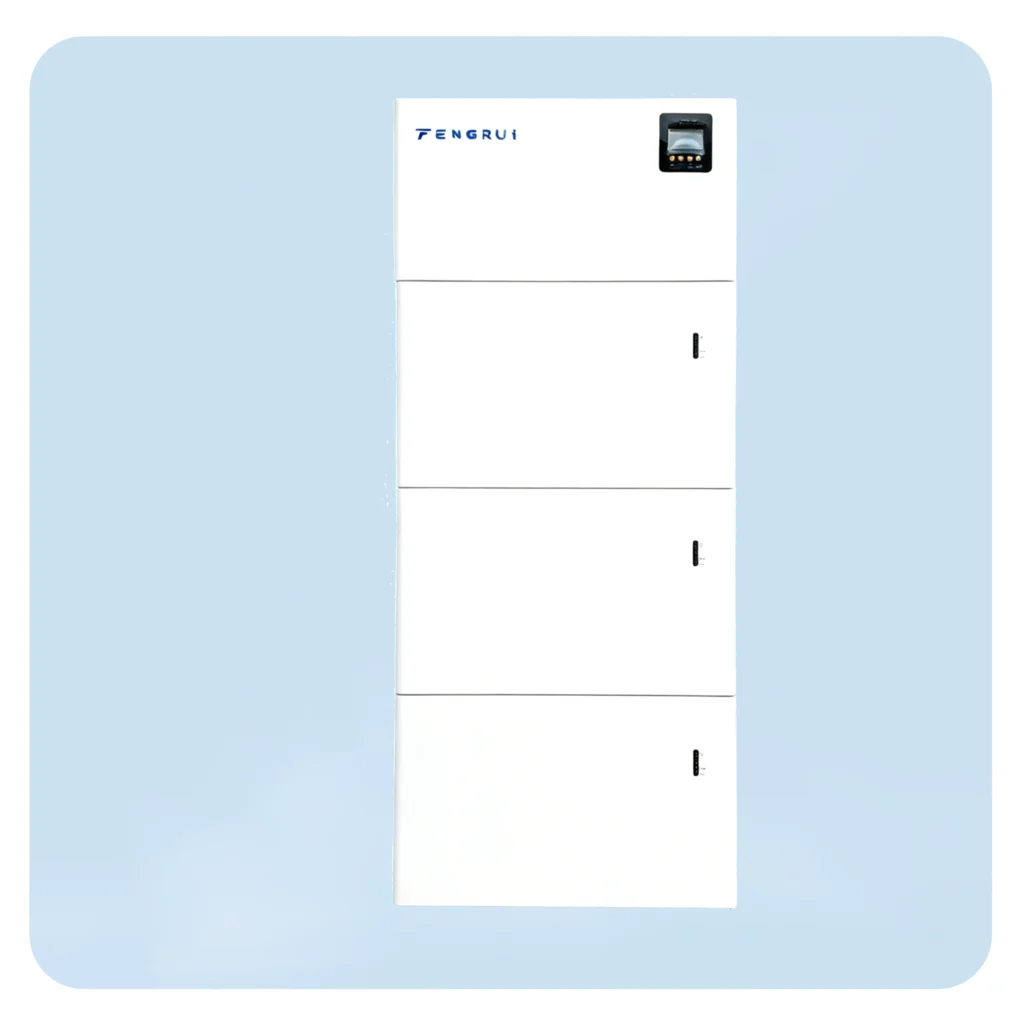

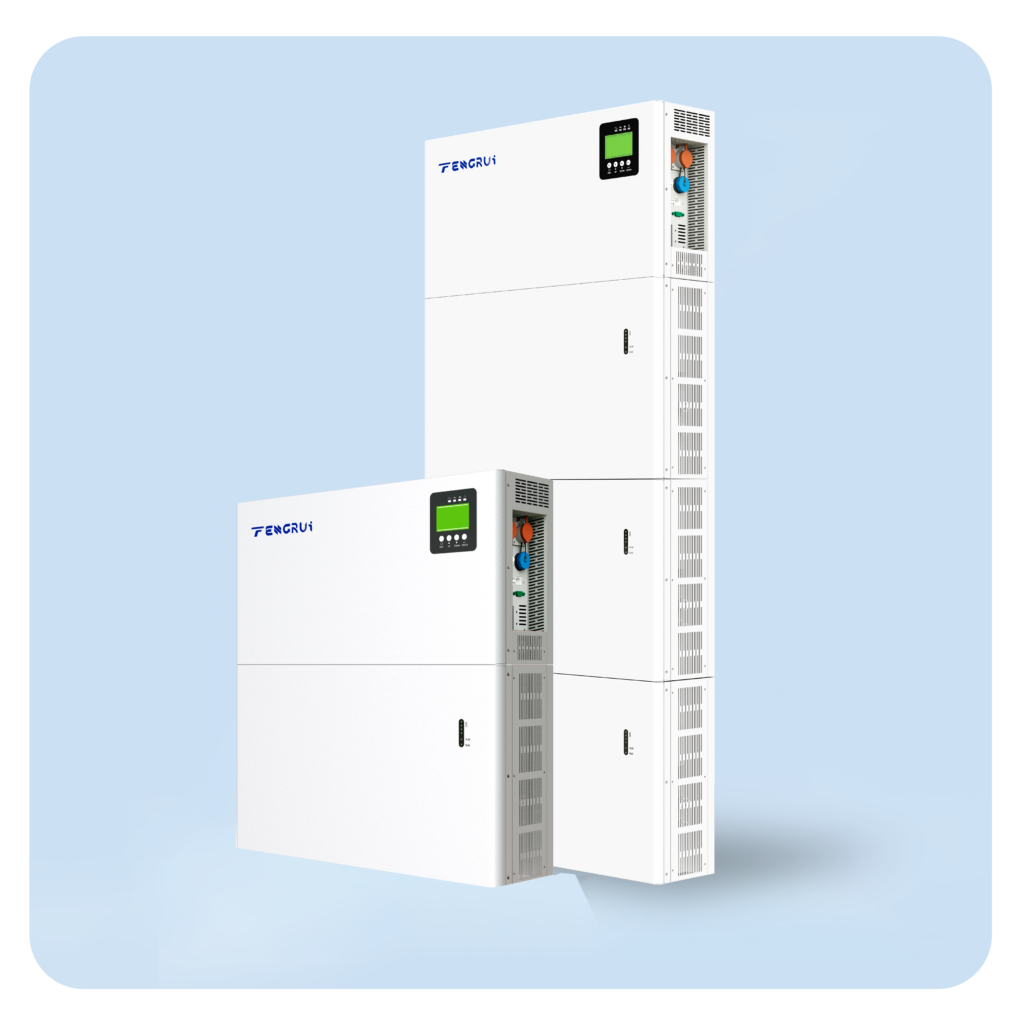

WSL48100 Wall Mounted All in One Design Home Energy Storage System
- Modular & Flexible Expansion: Four capacity options from 5.22 to 20.88kWh, allowing step-by-step expansion based on needs
- Single MPPT PV Input: Supports up to 5kW PV input, MPPT range 150-500V, compatible with most PV modules
- High Efficiency & Low THDi: Output THDi <3%, high power quality, safe for sensitive electronics
- Adjustable Power Factor: Power factor adjustable from 0.8 leading to 0.8 lagging, compatible with various grid requirements
- Fast Grid Transfer: Grid transfer time 20ms, ensuring uninterrupted operation of important appliances
Certificate: CE, UN38.3, RoHS, MSDS, IEC62109
Categories: Low Voltage Series(LV)
Technical Specifications
Model
W5-5K
W5-10K
W5-15K
W5-20K
Rated Energy
5.22 kWh
10.44 kWh
15.66 kWh
20.88 kWh
Dimensions (W*D*H)
600*163*655mm
600*153*1,005mm
600*163*1,355mm
600*163*1,705mm
Weight
60.8kg
109.6kg
158.4kg
207.2kg
General Data
Cell Chemistry
LFP / 102Ah
Rated Voltage
51.2V
IP Rating
IP21
Grid Connection
Single Phase
Grid Transfer Time
20ms
Display
LCD Screen
BMS Communication
CAN/RS485
Technical Specifications
Model
WSL48100
Cell Chemistry
LFP / 102Ah
Grid Connection
Single Phase
Grid Transfer Time
20ms
Nominal Voltage
51.2V
Cycle Life
Over 6,000 Cycles
Nominal Energy
5.22kWh ~ 20.88kWh
THDi
＜3%
Rated Power
5,000W
