Floor Standing All in One Home ESS

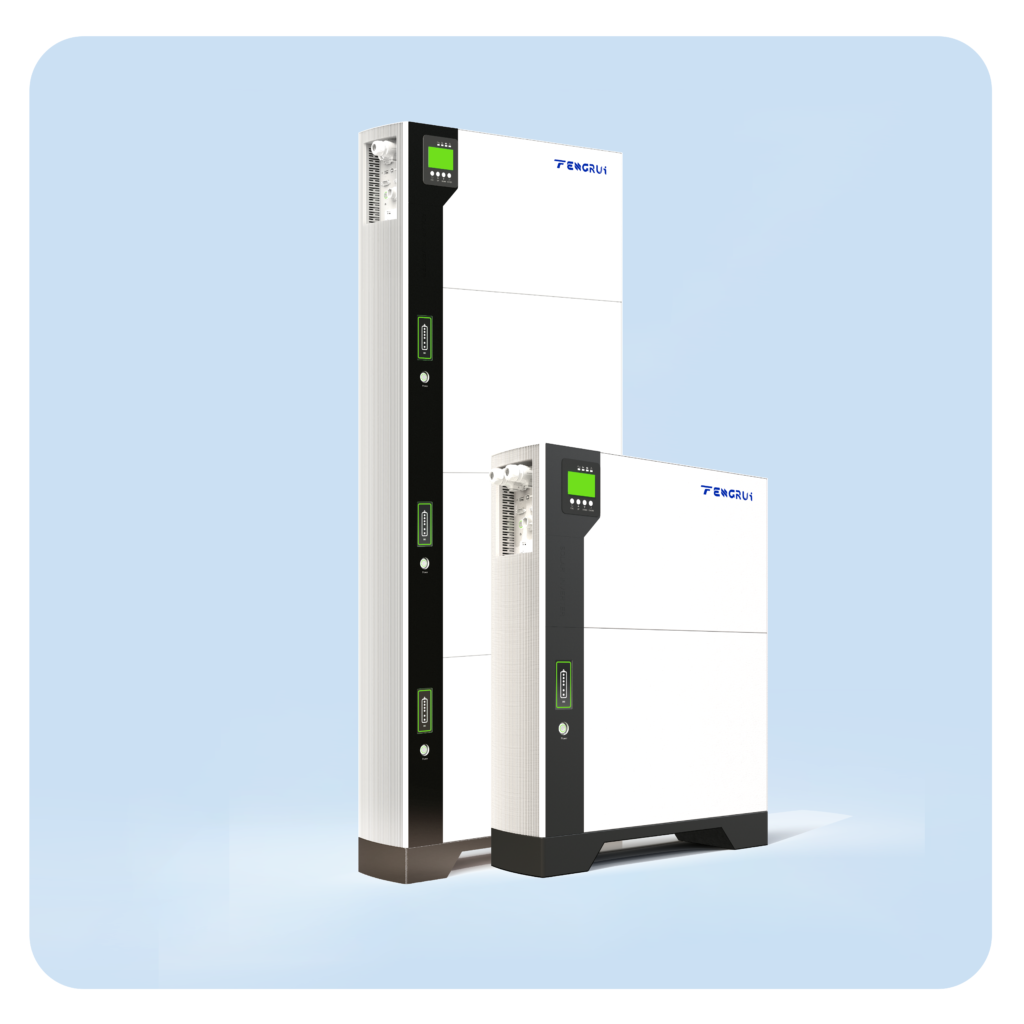

FGL48100 Low Voltage Floor Standing All in One Residential Energy Storage System
- Efficient & Safe: Utilizes LFP/102Ah cells over 95% DoD, ensuring safety, stability, and long-term reliability

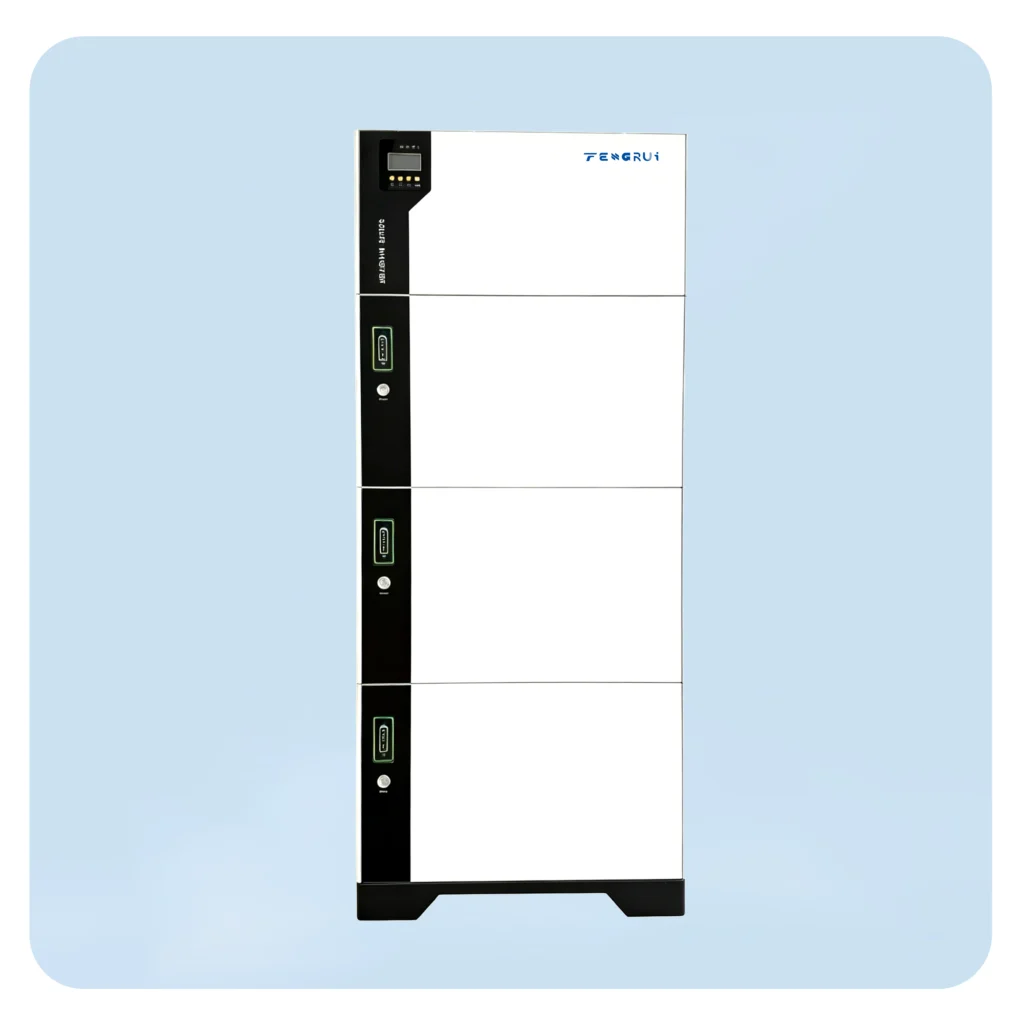

- Flexible Expansion: Supports 1 to 4 layers of battery modules, allowing flexible energy expansion from 5.22kWh to 20.88kWh to meet varying energy demands
- Cost-Effective & Durable: Cycle life up to 6000 cycles, reducing long-term operational costs
- Space-saving: Compact floor-standing design
- Smart Communication: Supports CAN/RS485 communication for integration with energy management systems, enabling remote monitoring and O&M to improve management efficiency
Certificate: CE, UN38.3, MSDS, IEC62109
Categories: Low Voltage Series(LV)
Technical Specifications
Model
F5-5K
F5-10K
F5-15K
F5-20K
Rated Energy
5.22 kWh
10.44 kWh
15.66 kWh
20.88 kWh
Dimensions (W*D*H)
633*170*772mm
633*170*1,146mm
633*170*1,521mm
633*170*1,896mm
Weight
72.8kg
124.8kg
176.8kg
228.8kg
General Data
Cell Chemistry
LFP / 102Ah
Rated Voltage
51.2V
IP Rating
IP21
Grid Connection
Single Phase
Grid Transfer Time
20ms
Display
LCD Screen
BMS Communication
CAN/RS485
Technical Specifications
Model
FGL48100
Cell Chemistry
LFP / 102Ah
Grid Connection
Single Phase
Grid Transfer Time
20ms
Nominal Voltage
51.2V
Cycle Life
Over 6,000 Cycles
Nominal Energy
5.22kWh ~ 20.88kWh
THDi
＜3%
Rated Power
5,000W
