650W N-TOPCon Bifacial Half Cell Solar Module
FENGRUI » Products » Solar Panel »

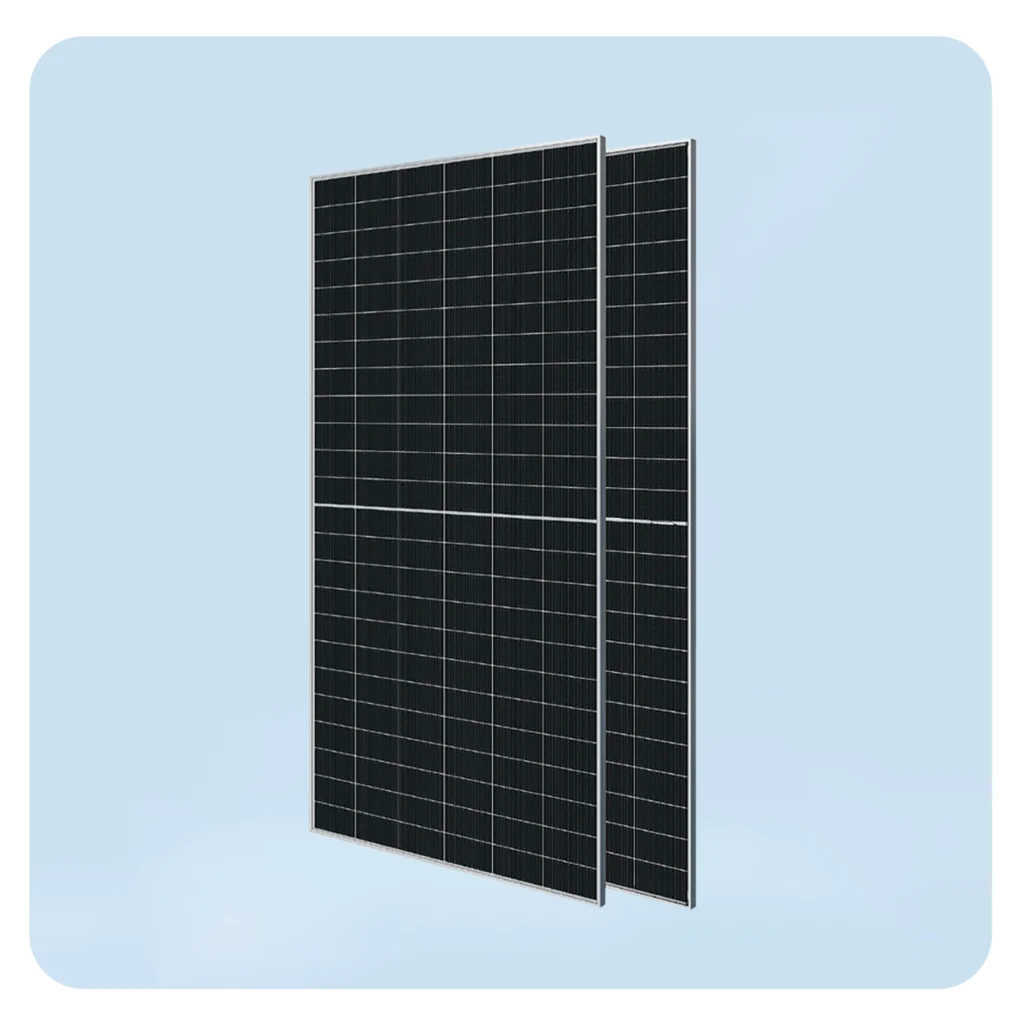

HGN-66HC10B 650W N-TOPCon Bifacial Half Cell Solar Module
- Ultra-High Power Output: Featuring advanced N-Type cell technology, the module delivers up to 650W of power output, significantly reducing the number of modules required for large-scale installations
- Higher Energy Yield: The advanced bifacial design allows the module to generate power from both the front and rear sides, achieving up to 85% bifaciality
- Advanced N-Type Technology: Built with next-generation N-Type solar cells, the module achieves conversion efficiencies up to 24.06%
- Excellent Temperature Performance: With a low temperature coefficient of only: -0.25%/°C, the module maintains stable performance even under high ambient temperatures
- Long-Term Investment Protection: The module is backed by: 15-Year product warranty and 30-year linear power warranty
Technical Specifications
Model
HGN-66HC10B
Power
650W
Solar Cell
N-Type Mono-crystalline
Module Efficiency
Up to 24.06%
Bifaciality
80% ±5%
Number of Cells
132 (6×22)
Dimensions
2,382 × 1,134 × 30 mm
Weight
31.6 kg
Maximum System Voltage
1500VDC
Mechanical Load
5400Pa (Front) / 2400Pa (Back)
Operating Temperature
-40°C to +85°C
Product Warranty
15 Years
Performance Warranty
30 Years
Temperature Coefficient of Pmax
-0.25%/°C
