HGH-66HC12B -

750W Bifacial Solar Panel Module

FENGRUI » Products » Solar Panel » HGH-66HC12B

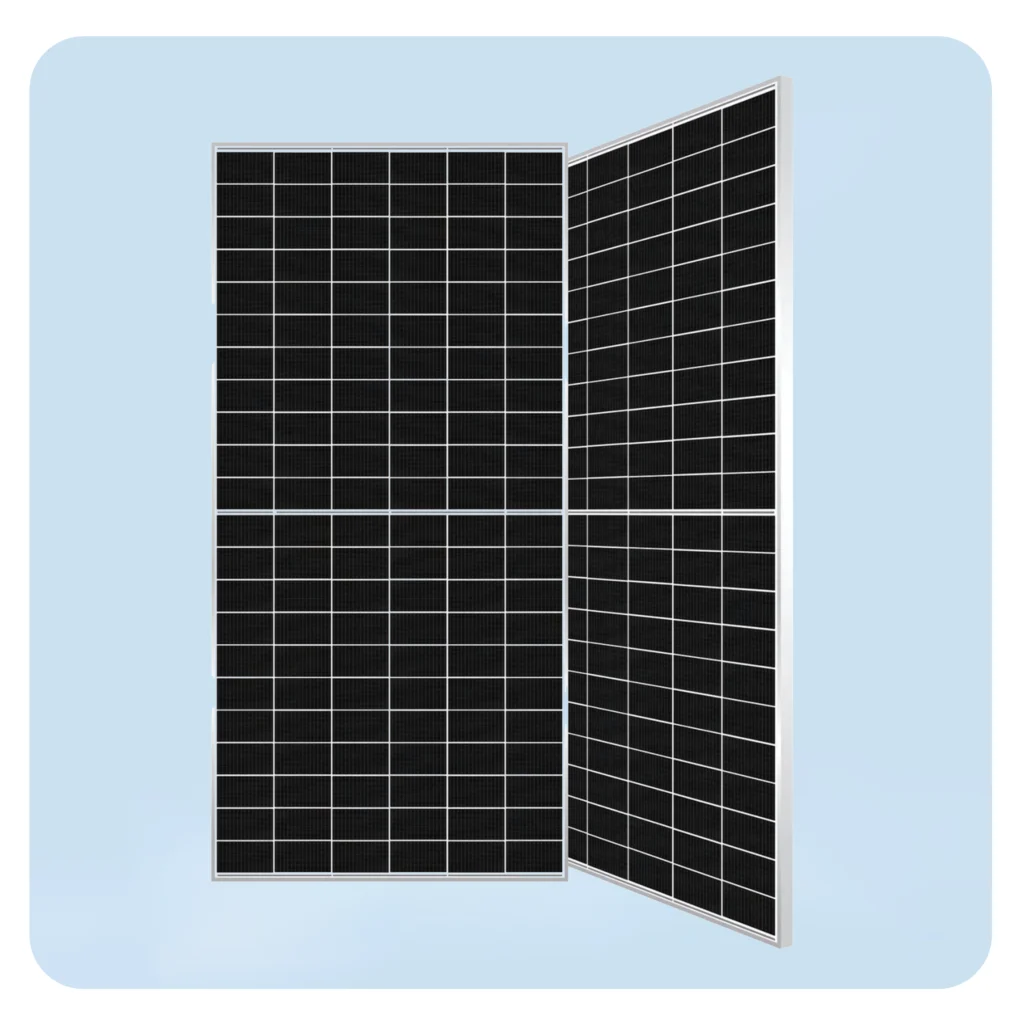

HGH-66HC12B 750W HJT N-Type Bifacial Half-Cut Solar Module

Ultra-High Power Output: Featuring advanced HJT N-Type cell technology, the module delivers up to 750W of power output, significantly reducing the number of modules required for large-scale installations

Higher Energy Yield: The advanced bifacial design allows the module to generate power from both the front and rear sides, achieving up to 95% bifaciality

Advanced HJT N-Type Technology: Built with next-generation HJT N-Type solar cells, the module achieves conversion efficiencies up to 24.15%

Excellent Temperature Performance: With a low temperature coefficient of only: -0.25%/°C, the module maintains stable performance even under high ambient temperatures

Long-Term Investment Protection: The module is backed by: 15-Year product warranty and 30-year linear power warranty

Technical Specifications

Model

HGH-66HC12B

Power

750W

Solar Cell

HJT N-Type Mono-crystalline

Module Efficiency

Up to 24.15%

Bifaciality

90% ±5%

Number of Cells

132 (6×22)

Dimensions

2,384 × 1,303 × 33 mm

Weight

37.9 kg

Maximum System Voltage

1500VDC

Mechanical Load

5400Pa (Front) / 2400Pa (Back)

Operating Temperature

-40°C to +85°C

Product Warranty

15 Years

Performance Warranty

30 Years

Temperature Coefficient of Pmax

-0.25%/°C
